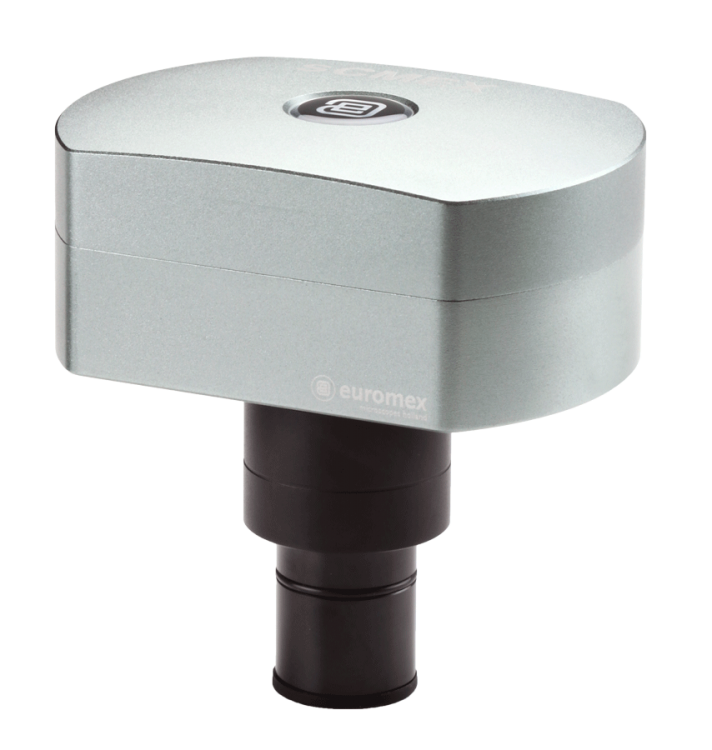

sCMEX-3 USB-3 cameras with Scientific sCMOS sensor with 3.1 MP

[tab name='Description']

The sCMEX-3, sCMEX-6, sCMEX-20 and sCMEX-32 cameras are equipped with an sCMOS sensor with 16 bit gray value and 36 bit color. Suitable for bright field, dark field and fluorescence. The sCMEX cameras have a USB-3 connection (USB 2 compatible) and are supplied with ImageFocus Alpha software. With ImageFocus Alpha it is possible to take photos and videos, perform measurements on still or live images, and add texts to captured images. Software is suitable for Windows7, 8 and 10, 32 and 64 bit configurations. For Mac OS there is also an ImageFocus Alpha Lite software available with a limited number of functions

Features

• High speed camera
• SONY Exmor R sCMOS sensor for perfect color reproduction
• Low noise
• USB 3.0 interface (USB 2.0 compatible)
• Back-illuminated

[tab name='Technical Specifications']

Sensor

SONY Exmor R sCMOS

Scan mode
Progressive

Filter
RGB

Mounting
C-mount

ADC (grayscale )
16 bits

Color depth
36 bits

Exposure
Automatic or manual

White balance
Automatic / manual

Data interface
USB 3.0 (USB 2.0 compatible)

Using conditions
0 – 60° C, 45 - 85% humidity

Storage temperature
- 20 to 70° Celsius

Supplied with
0.37x C-mount objective (for sCMEX-3)
0.5x C-mount objective (for sCMEX-3 and sCMEX -6),
1x objective with C-mount (for sCMEX-20 and sCMEX-32),
USB 3.0 cable, 30 and 30.5 mm tube adapters for stereo microscopes, 76 x 24 mm calibration glass (1mm /100), CD ROM with ImageFocus Alpha software, in cardboard box

Software
Supplied with ImageFocus Alpha analysis and measurement software capturing for photo and video recording and editing For Win 7/ 8/ 10 ( 32 and 64 bit configurations) A lite version of the software is available for MAC OS for taking photos
