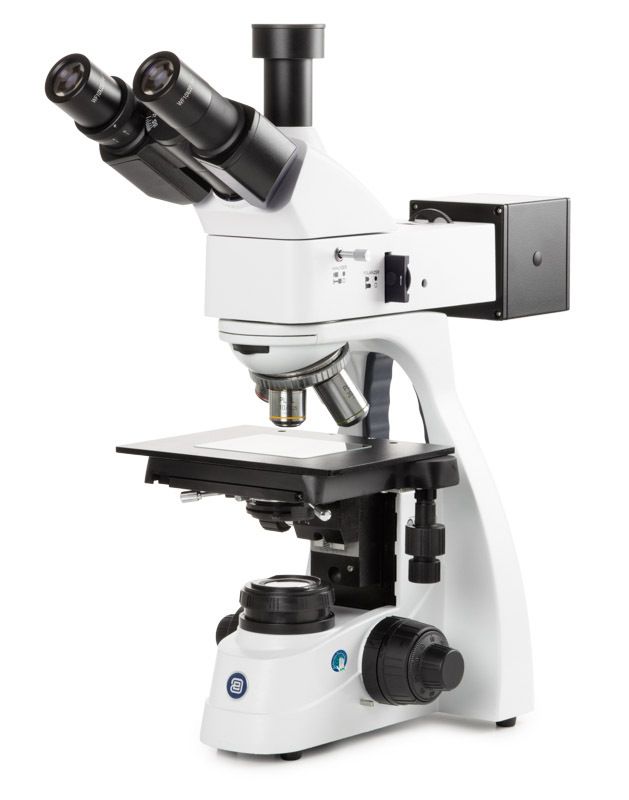

bScope BS.1053-PLMi with PLMi 5x/10x/20x/50x IOS objectives for material sciences (metallurgical)

[tab name='Description']

The well-equipped bScope® materials science microscopes are specially configured for observation of all kinds of materials, such as metals, plastics, wood, glass, etc.

These microscopes are used extensively for materials research and quality assurance

The design of the bScope® is both ergonomic and evolutionary. The bScope is equipped with wide-angle WF 10x/22mm eyepieces and low focus knobs to minimize fatigue during long work sessions, increasing comfort for microscopists. The robust and compact dimensions of the bScope®, in combination with the Cable Storage System provides more work space, safer operation and easy storage

Features

• For material sciences
• Trinocular models< /li>
• WF 10x/22 mm eyepieces
• Inverted ball-bearing revolver for up to four objectives
• Plan M-IOS objectives
• Polarizer and analyzer filters
• li>
• Integrated 'Rackless' mechanical XY table
• 3 W NeoLED™ adjustable transmitted and incident NeoLED™ lighting
• Equipped with APL (Anti-bacterial Protection Layer)
• Integrated carrying handle
• Cord storage system and anti-theft system

[tab name=' Technical Specifications']

OCULARS
Wide-angle WF 10x/22 mm eyepieces with 22 mm field of view (Ø 30 mm tube)

HEAD
The trinocular bScope® is equipped with :
• a Siedentopf type head, 360° rotatable
• 30° angled tube
• a ± 5 diopter adjustment on the left eyepiece
Adjustable eye relief between 48 and 76 mm. The trinocular head has a Ø 23.2 mm tube that guarantees maximum flexibility. The prisms in the head are designed to minimize light absorption to achieve a perfect digital image. The trinocular head has a beam selector (100:0 / 0:100) and generates an upright image

REVOLVER
Ball-bearing revolver for four objectives

OBJECTIVES
The state- of-the-art production techniques and multi-layer coatings used for the production of the bScope® lenses make the bScope® suitable for demanding applications. First-class spherical aberration correction techniques and modern CNC and assembly technology ensure the perfect alignment of the various lenses of the objectives. Infinity-corrected achromatic DIN plan M-IOS 5x/0.12, 10x/0, 25, 20x/0.40, 50x/0.70 IOS objectives. Optional: plan M-IOS S80x/0.80 and S100x/0.85 DIN IOS lenses are available

The S80x and S100x lenses are spring-mounted.
All lenses are treated against fungus and have an anti-reflection coating for maximum light output

FOCUS CONTROL
• Low-level coaxial coarse and fine adjustment with 180 divisions < br>• Precision: 1.1 µm, 200 µm per rotation, total reach of approximately 19 mm
• Supplied with adjustable specimen protection to prevent damage to the objectives and the specimen
• The coarse control is equipped with skid resistance control

TABLE
• The bScope® is equipped with a scratch-resistant 185 x 140 mm table with integrated 74 x 48 mm no protruding parts, for smooth movements and safer work. Low-positioned p>POLARIZATION
The bScope® has a slot above the turret for an optional polarizing filter for transmitted light

NEOLED™ REFLECTED ILLUMINATION

Adjustable 3 W NeoLED™ Köhler illumination for incident light with external power supply, 'push-pull' rotatable polarizer and push-pull analyzer, integrated condenser with iris diaphragm and field iris diaphragm. Integrated rotating filter disc with a green, blue, yellow and white filter

NEOLED™ TRANSMITTED LIGHTING

The 3 W adjustable Köhler NeoLED™ diascopic illumination is powered by an integrated 100-240 V power supply, making it suitable for worldwide use. The innovative design of the 3W NeoLED™ results in a larger aperture so that the bScope® optical system can generate images with higher resolutions, approaching the theoretical diffraction limit of the optics. Other advantages of NeoLED™ are low energy consumption, lower heat development and a long lifespan

KÖHLER LIGHTING
The Köhler lighting of the bScope models with infinity-corrected IOS plan lenses provides better contrast and maximum achievable resolving power. The Köhler illumination provides uniform illumination of the object and eliminates all interference from dust on lenses and glare from obliquely incident light

BATTERIES
With optional rechargeable batteries, the bScope® can be used without mains power (only available for transmitted illumination)

CSS – CABLE STORAGE SYSTEM
With the handy cable storage system at the back of the microscope, the bScope can be stored easily and safely

HANDLE
The integrated handle allows the microscope can be transported safely

ANTI-THEFT SLOT
On the back of the bScope® there is a small slot that, in combination with a Kensington Security Lock, can protect the microscope against theft

PACKAGING

Smart styrofoam packaging ensures a low ecological footprint while ensuring maximum safety during transport. Complete with plug, dust cover, spare fuse, WiFi filter and manual
