Vacuum system MD 4 series MD 4C NT +AK+EK, 1 piece
SKU 1TE1.1
€ 6 304,55
In stock
1
Save this product for later

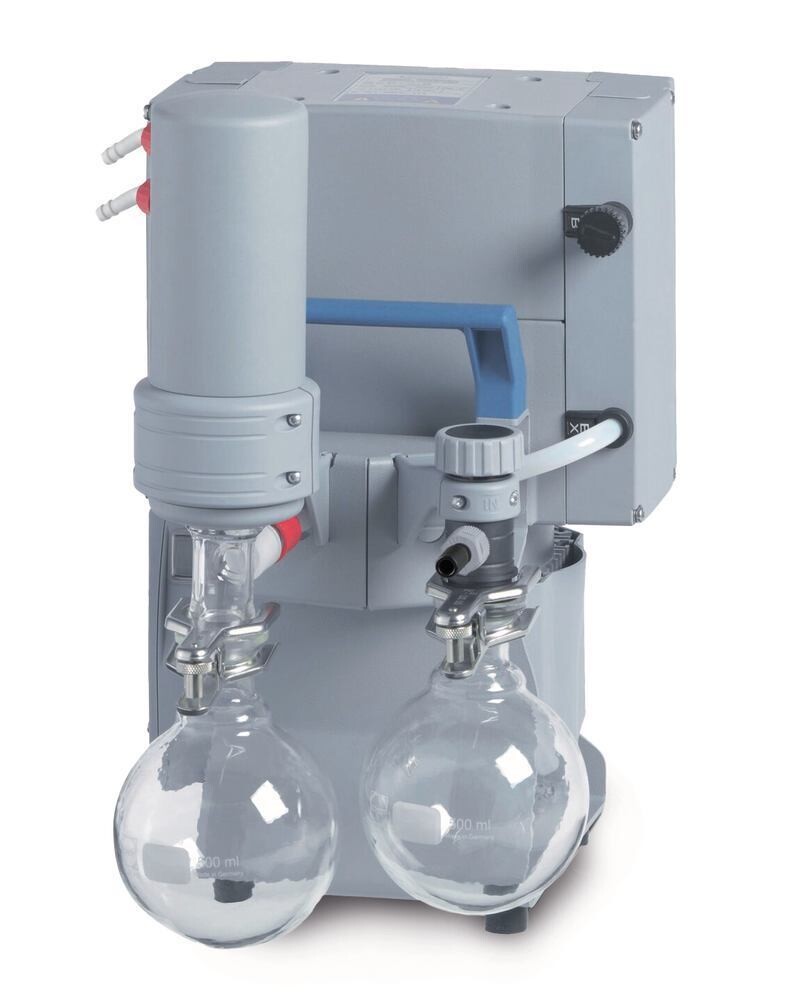

Vacuum system MD 4 series MD 4C NT +AK+EK, 1 piece
Product Details
HS code: 84141089
EAN: 8721028082985
Brand: Vacuubrand
For evacuating, evaporating and pumping out gases and vapours.
- Exceptional chemical and condensate resistance
- Very high delivery rate almost up to the very low end vacuum
- Particularly low end vacuum, even with open gas ballast valve
- Very quiet and low-vibration operation
Application: Vacuum concentrators, rotary evaporators and vacuum drying cabinets
Vacuum system MD 4 series MD 4C NT +AK+EC
For applications where pressure-side condensation of solvent vapours is desired.
- Suction-side separator (AK, glass with protective coating) keeps back particles and liquid droplets
- The pressure-side emission condenser (EC) is particularly effective and compact. It ensures almost complete recovery of solvents, enabling cost-effective re-use and actively contributing to environmental protection
Delivery incl. suction-side separator and pressure-side emission condenser.
Technical Information
| Type | MD 4C NT +AK+EC |
| System | MD 4C NT +AK+EC |
| Pump type | MD 4C NT |
| Suction capacity (l/min) | 57 |
| End vacuum (abs.) | 1,5 mbar |
| End vacuum abs. with gas ballast | 3 mbar |
| Overpressure | 0,1 bar |
| Inlet connection | for hose inner Ø 8 mm |
| Outlet connection | for hose inner Ø 8 mm |
| Ambient temperature | +10 - +40 °C |
| Materials in contact with media | ETFE pump head, carbon fibre-reinforced diaphragms: PTFE valves: FFKM |
| Motor power | 250 W |
| L x W x H | 326 x 243 x 402 mm |
| Weight | 17,3 kg |
| Mains connection | 230 V, 50/60 Hz |
