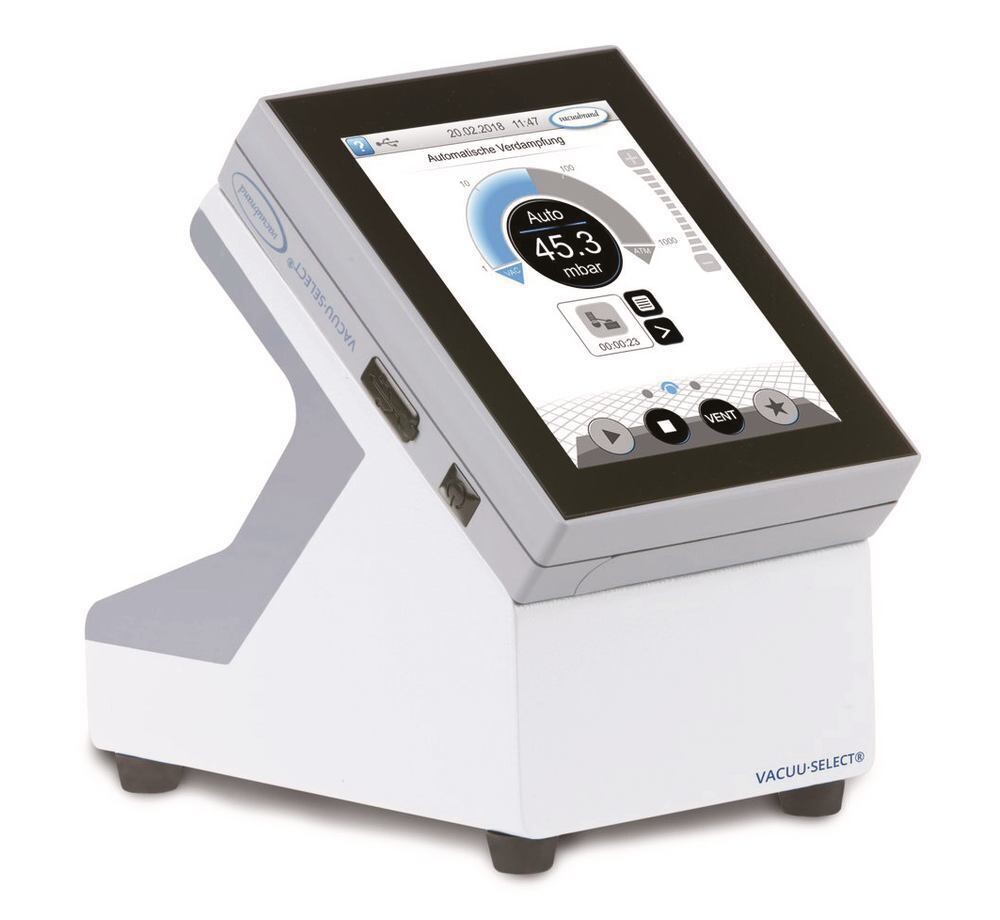

Vacuum regulator VACUU·SELECT compact Table-top unit, 1 piece
SKU 1E97.1
€ 2 783,60
In stock
1
Save this product for later
Vacuum regulator VACUU·SELECT compact Table-top unit, 1 piece
Product Details
HS code: 90322000
EAN: 8721028082046
Brand: Vacuubrand
For controlling a vacuum in the coarse vacuum range. Measures and displays the absolute pressure. Compact unit, simple installation, for increased process efficiency.
- Operation via glass touchscreen, even when wearing thick laboratory gloves
- Highly intuitive, application-oriented operator guidance with integrated help function and contextual tips for application
- Saves time thanks to preset vacuum processes for all common laboratory applications
- Independently detects the boiling point during solvent evaporation, e.g. using the rotary evaporator
- Storage of individual vacuum processes using an application editor for reproducible results
- Ceramic membrane vacuum sensor integrated in the device, measurement connection at the valve block. Easy to connect the controller between the pump and vacuum application
- Chemical vacuum power valve: Electromagnetic flip-flop valve for controlling the vacuum you require in the application, with graduated hose nozzles
- Integrated venting valve: Simple pressure compensation or ventilation with inert gas at the end of the process
- Integrated non-return valve: No interference with adjacent applications using a shared vacuum source
- Switchable pressure display (mbar, torr, hPa)
Vacuum controller VACUU·SELECT compact Tabletop device
Delivery incl. VACUU·SELECT compact controller in a tabletop version, with suction line valve, non-return valve, integrated ceramic membrane vacuum sensor, venting valve and mains adapter.
Technical Information
| Type | VACUU·SELECT compact |
| Version | tabletop device |
| Measuring range | 1080-0.1 mbar |
| Resolution | 0.1 mbar |
| Measuring principle | capacitive absolute pressure transducer, regardless of the gas type |
| Accuracy | < ±1 mbar |
| Connection | for hose inner Ø 6/10 mm |
| Venting valve connection | for hose inner Ø 4-5 mm |
| Ambient temperature | +10 - +40 °C |
| L x W x H | 191 x 127 x 187 mm |
| Weight | 2000 g |
| Mains connection | 100-230 V, 50/60 Hz |
