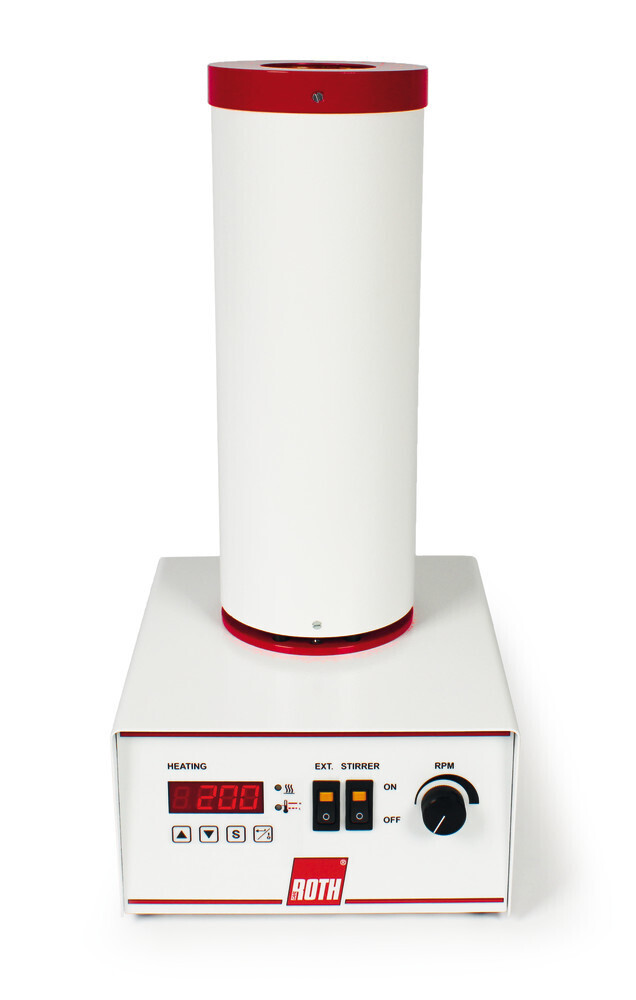

Accessories heating mantle with magnetic stirrer, Heating mantle 20 S for 200 ml beaker, with magnetic stirrer, 1 piece
SKU KCX6.1
€ 2 839,99
In stock
1
Save this product for later
Accessories heating mantle with magnetic stirrer, Heating mantle 20 S for 200 ml beaker, with magnetic stirrer, 1 piece
Product Details
HS code: 84198998
Size: 200 ml
EAN: 8721028066480
Brand: Binder
Specially designed for ROTH’s high-pressure laboratory autoclaves. To ensure optimum distribution and use of heat, the heating mantles are precisely adapted to the dimensions of the individual autoclave beaker.
Features:
- High temperature stability
- Integrated magnetic stirrer with continuous speed adjustment without direct drive
- Heating and stirrer can be activated separately
- Temperature adjustment using the digital display and display of the actual temperature of the heating mantles
- Integrated contact thermometer with full functionality. Option to directly connect the medium temperature sensor thermocouple type J/Fe-Cu-Ni (please order temperature measuring sensor and connection cable separately)
- Due to the high working temperature range of up to 300 °C, temperatures of over 240 °C can be reached, depending on the medium and application
- Additional safety: temperature limiter for the internal and external temperature sensors
Accessories heating mantle with magnetic stirrer
Delivery without temperature measuring sensor and connecting cable (please order separately).
Technical Information
| Type | 20 S |
| Heating output | 300 W |
| Suitable for | Model II, 200 ml |
| Speed range | 850 to 1500 rpm |
| Operating temperature | +8 °C above room temperature up to 300 °C, continuously adjustable |
| Setting accuracy | ±1 K |
| Control accuracy | ±8 K |
| Control accuracy with sensor | ±3 K |
| Control | Internally via heating mantle, externally via separate temperature gauge (available as an option) |
| Width | 220 mm |
| Depth | 250 mm |
| Height | 334 mm |
| Mains connection | 230 V, 50/60 Hz |
