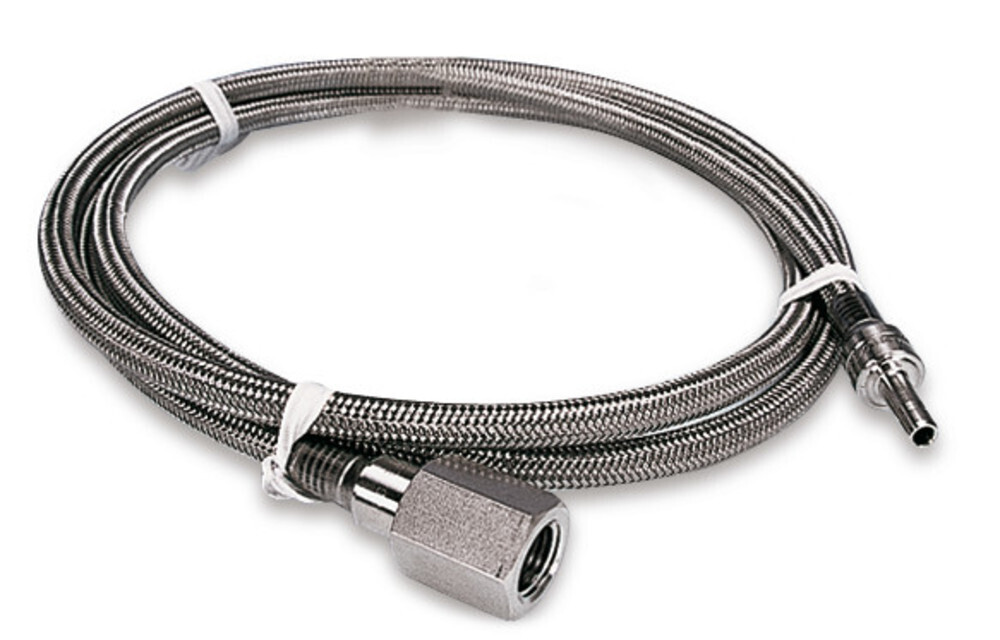

Gas supply accessories PTFE hose with NPT internal thread ¼ Inch, 1 piece
SKU H996.1
€ 659,12
In stock
1
Save this product for later
Gas supply accessories PTFE hose with NPT internal thread ¼ Inch, 1 piece
Product Details
HS code: 83071000
EAN: 8721028066404
Brand: DWK Life Sciences
Stainless steel-coated PTFE hose for possible connection to a pressure reducer and/or direct combination to the high-pressure hose of a gas cylinder, in combination with the gas cylinder connection (Art. No. 2066.1, please order separately).
Accessories gas injection PTFE hose with NPT inner thread ¼?
On 6 mm pipe adapter, for gas cylinder connection (Art. No. 2066.1, please order separately).
Technical Information
| Type | PTFE high-pressure hose with NPT inner thread ¼? |
| Ø internal | 4.8 mm |
| Ø ext. | 8 mm |
| Min. burst pressure | 825 bar |
| Operating pressure | 205 bar |
| Additional data | The operating pressure applies for working temperatures from +20 to +50 °C |
| Temperature range | -55 to +235 °C |
| Min. bend radius | 51 mm |
| Length | 1.5 m |
| Wall thickness | 1 mm |
