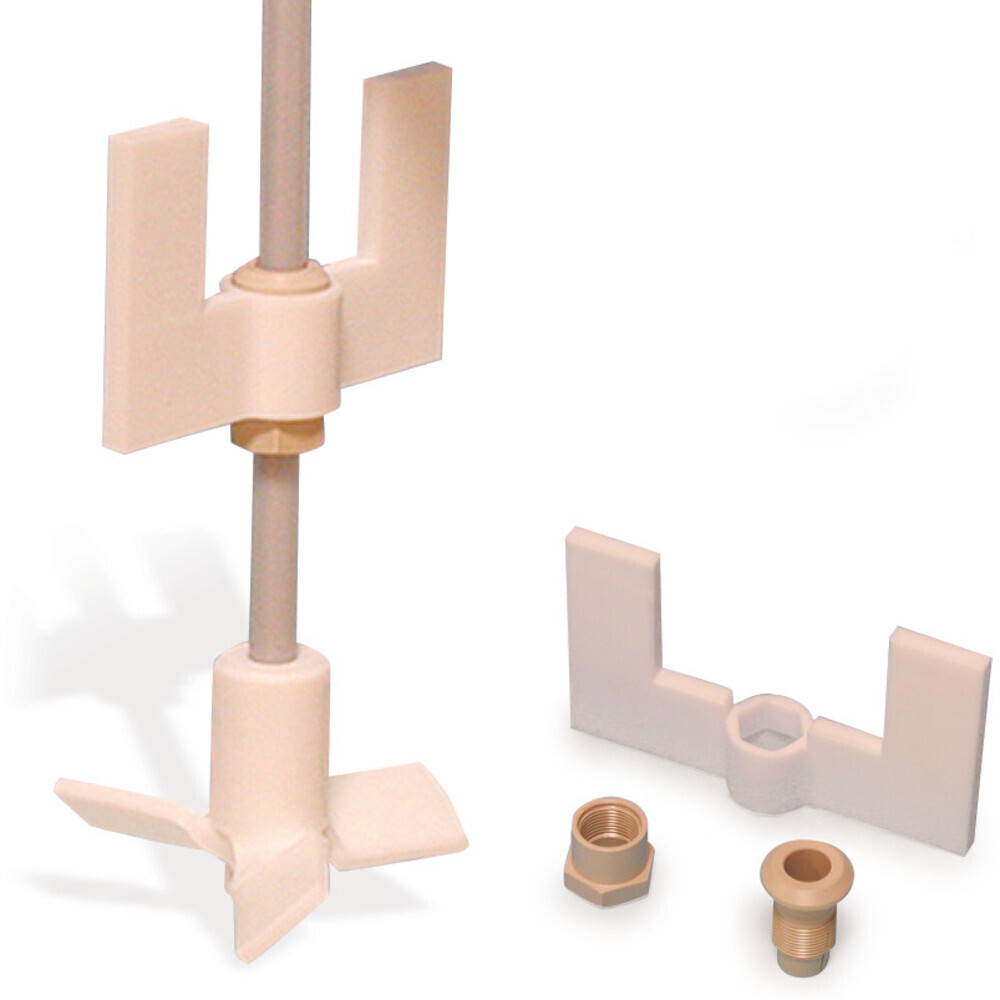

For fastening stirrer shafts made of PTFE with metal core, glass or metal. The height and also the turning position of the additional wings can be firmly positioned freely using a clamp fastener. Temperature stable from -200 °C to +250 °C, without load.
Suitable for | Shaft-Ø 10 mm |
Dimensions | Sheet: 100 x 60 mm |
Anchor agitator: Reduced deposits on the vessel wall. Tangential stream with high shear rate. Suitable for semi-fluid mediums (medium to high viscosity).Dissolver agitator: Radial stream. High turbulence and shear forces.For use at medium to high speeds.Surface agitator: Less turbulence. Gentle handling of the product.For use at low to medium speeds.Half-moon agitator: The semi-round shape of the agitator blade is ideally suited to agitating in round-bottomed flasks, the tip function makes it easy to insert the agitator shaft into vessels which have been ground or have a narrow neck. Suitable for agitating liquids with low to medium viscosity. For use at medium speeds.Propeller agitator: Standard agitator. Axial direction. For mixing mediums with low to medium viscosity. Ideal for homogenising and suspending.Centrifugal agitator: Double-leaf; thanks to the moveable agitator leaf, the agitator shaft can be easily inserted into the vessels with a narrow neck. The leaves open when the speed increases. For use at medium to high speeds.
