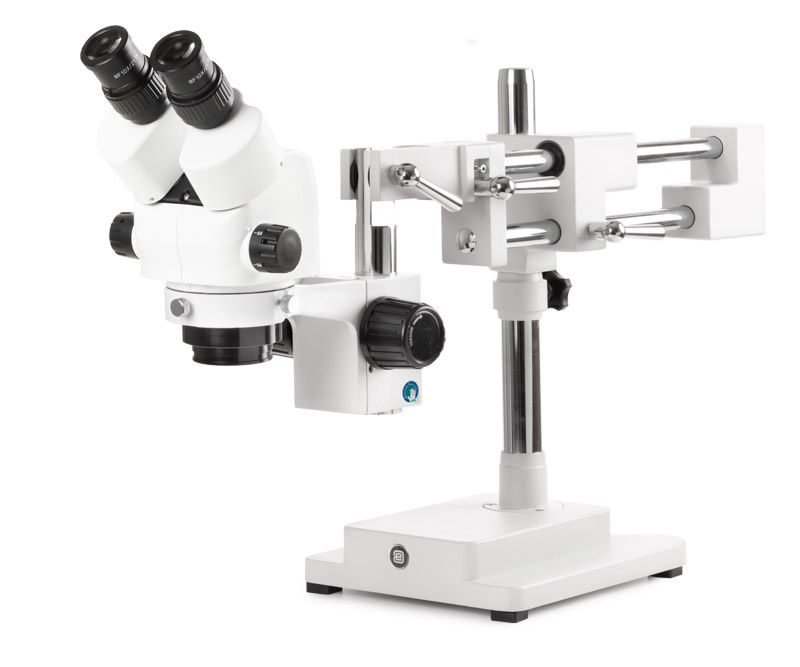

StereoBlue SB.1702-B Stereo microscope Biocular with 0.5 - 5.5x zoom EVO and double-arm swivel arm tripod on heavy base plate
SKU SB.1702-B
€ 818,71
In stock
1
Save this product for later
StereoBlue SB.1702-B Stereo microscope Biocular with 0.5 - 5.5x zoom EVO and double-arm swivel arm tripod on heavy base plate
Product Details
Brand: Euromex
0,5 - 5,5x zoom EVO: ja
0,7 - 4,5x zoom: nee
1x/3x objectives: nee
2x/4x objectives: nee
30 LED ring light: nee
Digital: nee
Double-arm swing arm tripod on heavy base plate: ja
Column tripod with 3 W LED: nee
LED: ja
Model: SB.1702-B
Eyepiece: WF10x/21 mm
Tripod type: Dubbelarmig zwenkarmstatief
Rack and pinion tripod with 3 W LED: nee
Performance: Bioculair
illumination: LED
Zoom: 0,5 - 5,5x zoom EVO
Swivel stand: nee
[tab name='Description']
Euromex BlueLinehas a high-quality range of stereo microscopes specially developed for use in laboratories and higher education
StereoBlue microscopes have been specially developed for laboratory and educational applications and are highly valued by biologists, entomologists, geologists, mechanical and electronic engineers, and other professionals such as jewelry makers and dental technicians . These microscopes are available with two pairs of objectives or zoom lenses for magnifications from 3.5x to 135x and incident and transmitted LED illuminations
Features
- Designed for professionals
- Clear, high-resolution images
- Rugged and sturdy
- Two magnifications or zoom magnification
- Equipped with APL (Anti-bacterial Protection Layer) )
- Ergonomic handle
- 5 year warranty
| Model | SB.1702-B |
| Version | Biocular |
| 1x /3x objectives | no |
| 2x/4x objectives | no |
| 0.7 - 4.5x zoom | no |
| 0.5 - 5.5x zoom EVO | yes |
| Rack and pinion stand with 3 W LED | no |
| Column stand with 3 W LED | no |
| Swivel tripod |
no |
| Double-arm swivel arm tripod on heavy base plate | yes |
| 30 LED ring light | no |
[tab name='Technical Specifications']
OCULARS
A pair of WF10x/21mm eyepieces with eyecups
HEAD
- Binocular or trinocular with 45° inclined tube
- Diopter adjustment on both eyepieces for zoom models. Diopter adjustment on one eyepiece for other models
- Adjustable eye relief between 55 and 75 mm
- All lenses are treated against fungus and have an anti-reflection coating for maximum light output
ROTATING REVOLVER WITH TWO OBJECTIVES
- Rotating revolver with two l 1x/3x or 2x/4x objectives
- Magnifications of 10x/30x or 20x/40x
- Image fields of 21mm/6.9mm or 10.5mm/5.2mm
- Working distance of 100mm
ZOOM MODELS
MAGNIFICATIONS
Specifications of working distances and fields of view
|
Zoom range |
Magnification |
Field of view |
Working distance |
|
0.7x to 4.5x |
7x to 45x |
29.9 mm to 4.6 mm |
100mm |
|
0.5x to 5.5x (EVO) |
5x to 55x p> |
38 mm to 3.9 mm |
100 mm |
59.9
Standard
170.0
67.5
|
oculars - | < /tr>
|||||
|
enlargements |
working distance |
minimum |
maximum< br>magnification |
maximum |
minimal |
|
0.5 |
170.0 |
3.5 |
22.5 | < td>
9.3 |
|
|
0.75< /p> |
114.0 |
5.3 |
33.8 |
40.0 |
6.2 |
|
100.0 |
7.0 |
45.0 |
30.0 |
4.6 | < /tr>
|
|
1.5 |
48.0 |
10.5< /p> |
67.5 |
19.9 |
3.1 |
|
oculars - |
|||||
|
enlargements |
working distance |
minimum |
maximum |
maximum < br>field of view |
minimal |
|
0.5 | < td>
5.3 |
33.8 |
42.9 |
6.7 |
|
|
0.75 |
114.0 |
7.9 |
50, 6 |
28.6 |
4.4 |
|
Standard |
100.0 |
10.5 | < td>
21.4 |
3.3 |
|
|
1.5 |
48.0 |
15.8 |
101.3 |
14.3 |
2, 2 |
|
oculars - |
|||||
|
enlargements |
working distance |
minimum |
maximum |
maximum |
minimum |
|
0.5 |
170.0 |
7.0 |
45.0 |
28.6 |
4.4 |
|
0.75 |
114.0 |
10 .5 |
67.5 |
19.0 |
3.0 |
|
Standard |
100.0 |
14.0 |
90.0 |
14.3 |
2.2 |
|
1.5 |
48, 0 |
21.0 |
135.0 |
9 .5 |
1.5 |
TRIPOD
- StereoBlue models with rack and pinion stand and column stand have an ergonomically designed flat base, supplied with two object clamps and Ø 60 mm transparent and black/white object plates.
- For the coarse adjustment there is friction adjustment
- The ergonomically designed swivel stands (-B and -U) are ideal for observing large objects under the microscope. Supplied without lighting.
- The U and B stands can be equipped with ring lighting LE.1974 and LE.1973, with 72 or 144 segment-controlled power LEDs respectively, ideal for creating or eliminating shadows..
- The tripods are made of a metal alloy with a hard coating
< em>
(More lighting options can be found in the Accessories chapter)
LIGHTING
- 3 W transmitted and incident LED lighting can be switched on simultaneously and the light intensity of both lighting can be controlled individually.
- Models SB.3903 and SB.3903-P have a built-in 30 LED ring light as a light source for incident light and a 3 W light source for transmitted light
- Models SB.1902-U, SB.1903-U, SB.1902-B and SB.1903-B are supplied without lighting
STORAGE AND TRANSPORT
From left to right: AE.9919 - AE.9916
ANTI-THEFT SLOT
On the back of the microscope there is a small slot that, in combination with a Kensington security lock, can protect the microscope against theft (not for U and B models)
< strong>PACKAGING
Complete with plug, dust cover , spare fuse, Ø 60 mm transparent and black/white object plates and manual. Everything packed in polystyrene packaging
