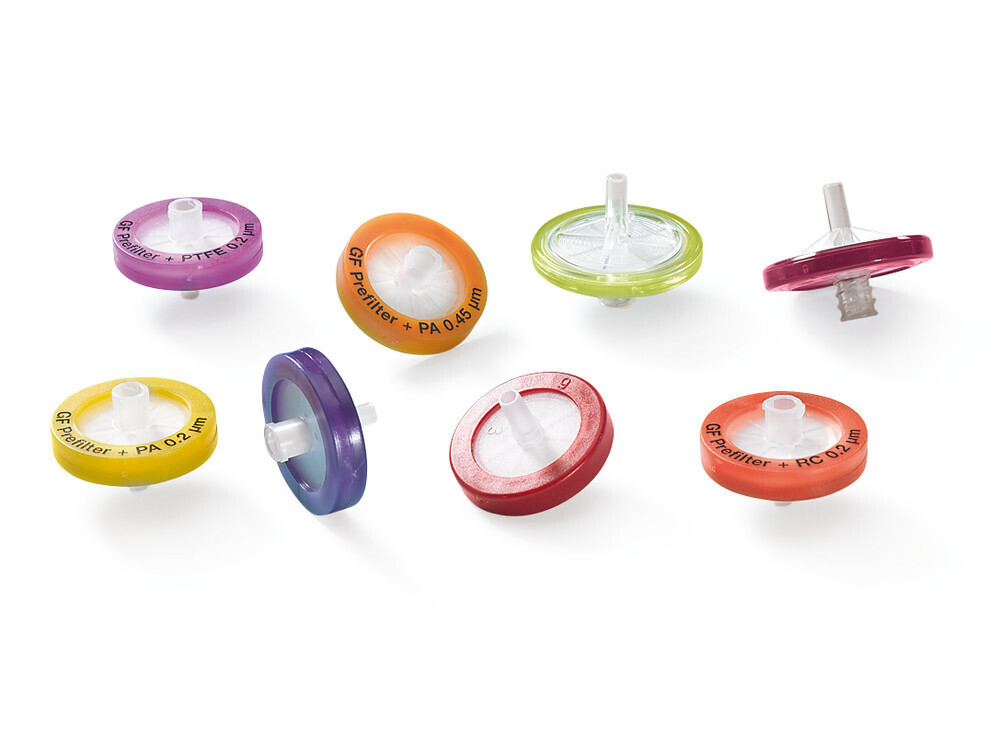

With pressure- and chemical-resistant housing made of PP, housing ultrasonically welded (filter with membrane Ø 15 mm) or injection-moulded (filter with membrane Ø 25 and 30 mm).
Sterile version (individually packed) available as an option.
For the filtration of HPLC and GC solvents and for purification and sterile filtration of aqueous, alkaline and organic solutions. Hydrophilic, resistant to many solvents. High mechanical stability.
Pore size | 0,45 µm |
Sterility | Sterile |
Ø membrane | 15 mm |
Colour coding | colourless |
Ø Housing | 20 mm |
Membrane material | nylon |
Housing material | PP |
Sample volume | 1–10 ml |
Dead volume | <25 µl |
Total filter volume | 0.335 ml |
Filtration area | 1.77 cm² |
Max. operating pressure | 7 bar |
Inlet connection | Luer lock connector |
Outlet connection | Luer connector |
