For laboratory stirrers. Material stainless steel, anchor stirrer (Art. No. Y443.1 and Y444.1) and propeller stirrer (Art. No. A328.1) made of fine cast metal. Choice depends on use, viscosity and amount of medium.
Wavelength | 550 mm |
Ø Shaft | 10 mm |
Ø Stirrer | 150 mm |
Maximum speed | 800 rpm |

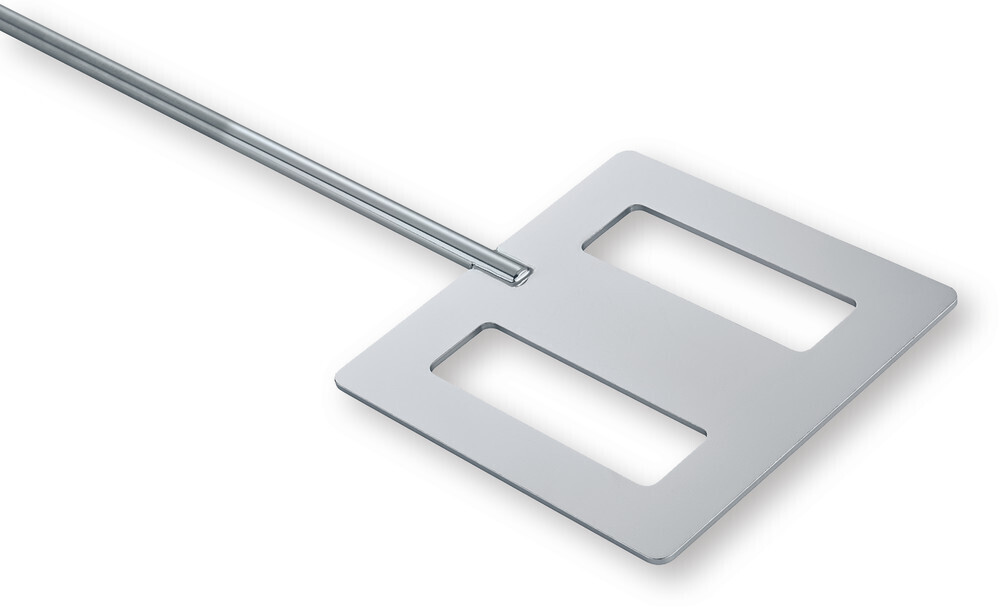

Anchor agitator: Reduced deposits on the vessel wall. Tangential stream with high shear rate. Suitable for semi-fluid mediums (medium to high viscosity).Dissolver agitator: Radial stream. High turbulence and shear forces.For use at medium to high speeds.Surface agitator: Less turbulence. Gentle handling of the product.For use at low to medium speeds.Half-moon agitator: The semi-round shape of the agitator blade is ideally suited to agitating in round-bottomed flasks, the tip function makes it easy to insert the agitator shaft into vessels which have been ground or have a narrow neck. Suitable for agitating liquids with low to medium viscosity. For use at medium speeds.Propeller agitator: Standard agitator. Axial direction. For mixing mediums with low to medium viscosity. Ideal for homogenising and suspending.Centrifugal agitator: Double-leaf; thanks to the moveable agitator leaf, the agitator shaft can be easily inserted into the vessels with a narrow neck. The leaves open when the speed increases. For use at medium to high speeds.
