Peltier-cooled camera 20 Mp

[tab name='Description']

The Euromex 6 and 20 Megapixel Peltier-cooled cameras are equipped with a Peltier cooling element that makes the camera very suitable for fluorescent microscopy and other applications where little light is available. These advanced models are equipped with a USB-3 interface. All cameras are supplied with ImageFocus Alpha software. The software has specific functions for fluorescence such as combining fluorescent images. In addition, both recordings and videos can be made, measurements can be performed on live and saved recordings and notes can be added to recordings. Suitable for Windows 7, 8 and 10, both for 32 and 64 bit computers

Features

• Peltier-cooled camera for universities, laboratories and industry
• For fluorescent microscopes
• 6 or 20 Mpix color camera
• Large 1” sensor
• USB-3 interface
• Advanced software
• li>

[tab name='Technical Specifications']

Sensor
1 inch Peltier-cooled CMOS sensor

Pixels
5440 x 3648 pixels, 20 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
2.4 μm x 2.4 μm

Filter
RGB

Mounting
C-ring

Frame rate
5 shots per second (5440 x 3648 pixels)
10 shots per second (4096 x 2160 pixels)
15 shots per second (2736 x 1824 pixels)
30 shots per second (1824 x 1216 pixels)

Exposure
Auto or manual, shutter speed 0.1 ms ~ 3600 s

White balance
Auto/manual

Sensitivity
462 mV @ 1/30 s

Interface
USB 3.0 high speed (compatible with USB-2)

Peltier cooling
Two-step active cooling down to -45 °C under camera body temperature

Usage conditions
-10 ~50°C, 30-80% humidity

Storage temperature
-20~60°C

Power supply
5V via PC USB port
External power supply for cooling, DC 12 V, 3 A

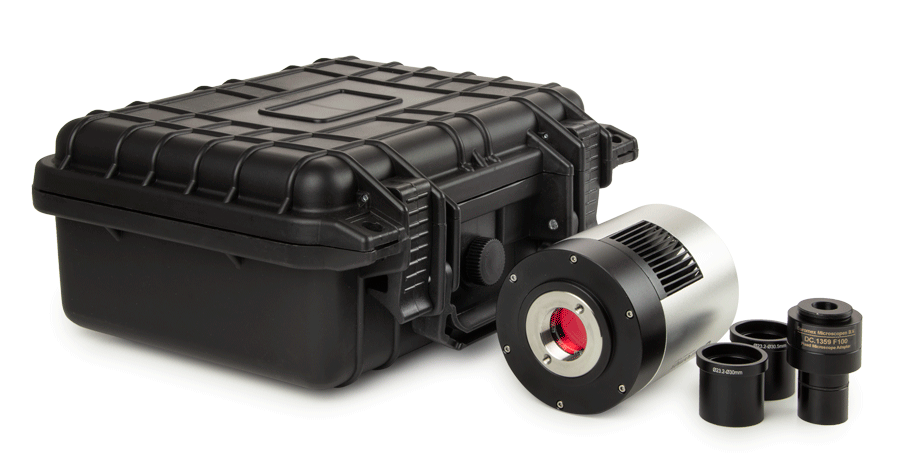

Supplied with
USB-3 cable, 1x C-ring objective, 30.0 and 30.5 mm to 23.2 mm adapters for use with stereo microscopes, 1 mm/100 ( 10 µm/division) calibration plate, ImageFocus Alpha software, external 100-240 Vac power supply and transport case

Product number

DC.20000i
