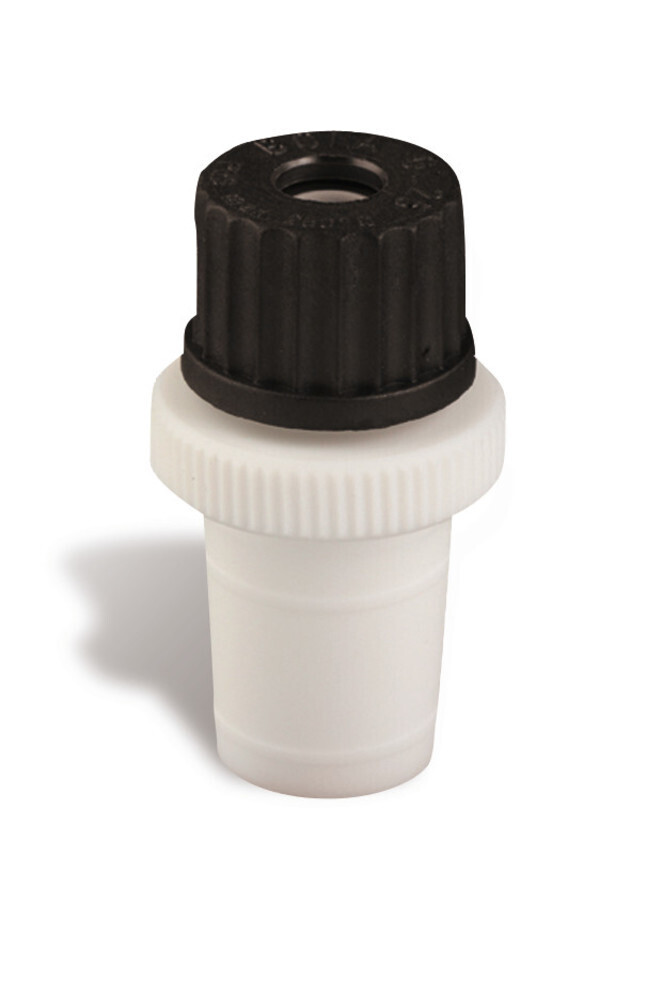

Guide for stainless steel, glass and PTFE stirrer shafts. Embossed ring seals on the PTFE ground glass cone to fit ground glass sleeve. With special seal made of PTFE and FPM O-ring. Proportioned pressure of the GL screw cap on the O-ring provides a proper seal against the stirrer shaft. Temperature stable from -50 °C to +250 °C.
Suitable for | Shaft-Ø 8 mm |
Standard ground glass joint core | 29/32 |
Total length | 74 mm |
Anchor agitator: Reduced deposits on the vessel wall. Tangential stream with high shear rate. Suitable for semi-fluid mediums (medium to high viscosity).Dissolver agitator: Radial stream. High turbulence and shear forces.For use at medium to high speeds.Surface agitator: Less turbulence. Gentle handling of the product.For use at low to medium speeds.Half-moon agitator: The semi-round shape of the agitator blade is ideally suited to agitating in round-bottomed flasks, the tip function makes it easy to insert the agitator shaft into vessels which have been ground or have a narrow neck. Suitable for agitating liquids with low to medium viscosity. For use at medium speeds.Propeller agitator: Standard agitator. Axial direction. For mixing mediums with low to medium viscosity. Ideal for homogenising and suspending.Centrifugal agitator: Double-leaf; thanks to the moveable agitator leaf, the agitator shaft can be easily inserted into the vessels with a narrow neck. The leaves open when the speed increases. For use at medium to high speeds.
