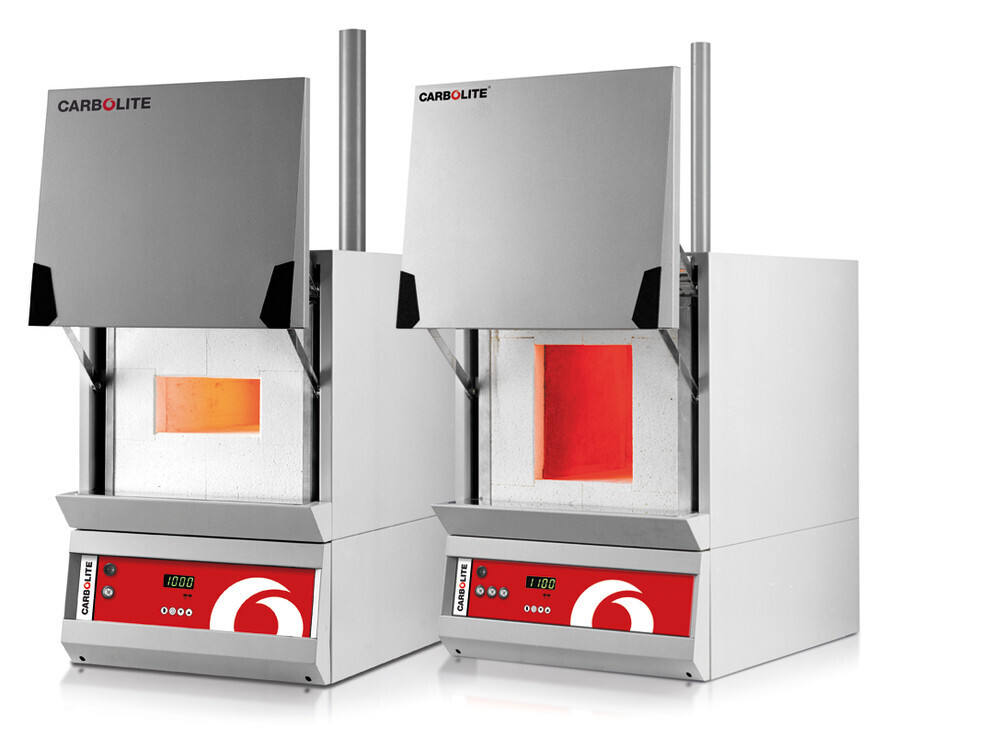

Muffle/ashing furnace AAF series, 6.9 l, AAF 11/7, 1 piece
SKU XK54.1
€ 6 015,81
In stock
1
Save this product for later
Muffle/ashing furnace AAF series, 6.9 l, AAF 11/7, 1 piece
Product Details
HS code: 85141980
EAN: 8721028079466
Brand: Carbolite Gero
For temperatures up to 1100 °C.
- Ceramic muffles heated from 4 sides for good temperature homogeneity (AAF 11/3 and AAF 11/7), AAF 11/18 model is heated from 2 sides with covered heating elements
- Parallel swing-up doors
- Hot door insulation is always facing away from the user
- Vacuum-formed fibre insulation
- Heating-up time: approx. 100 min
- Preheated air intake for optimal temperature distribution
- Air exchange rate: approx. 5 to 6 air changes per minute
- Exhaust outlet with vent (Ø 50 mm)
- With door contact switch
- PID thermostat with digital display
(target/actual temperature display) - Input of a temperature control profile with 2 segments (heating rate and hold time) using the timer function
- Built-in timer function (runtime: 99 h and 59 min)
- The timer can be operated in 5 different modes, e.g. the timer waits until the set temperature is reached, then begins to count down and on expiration shuts off the heater
- Please pay attention to supply voltages
Muffle/ashing furnaces AAF series
Delivery incl. inconel bottom trays with handle (AAF 11/3 and AAF 11/7) or Inconel rack with handle for loading with samples on two levels (AAF 11/18).
Technical Information
| Type | AAF 11/7 |
| Vol. | 6.9 l |
| Max. temperature | 1100 °C |
| Inner width | 170 mm |
| Inner height | 90 mm |
| Inner depth | 455 mm |
| Outer width | 430 mm |
| Outer height | 650 mm |
| Outer depth | 740 mm |
| Power consumption | 3900 W |
| Weight | 63 kg |
| Mains connection | 230 V, two-phase, 50 Hz with 16 A CEE plug, 16 A fuse per phase |
