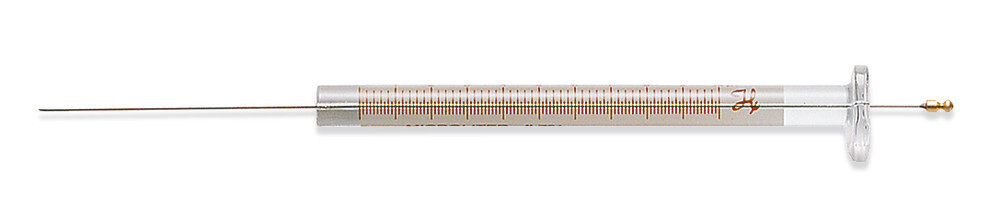

For dispensing liquids with Agilent autosamplers HP 7683/HP 7673. The piston is ground in to the glass body. Needle with 8° grinding (special cone tip for autosamplers), fixed in place.
Technical specifications:
Correctness:≤ ±1% of the nominal volume. Test pressure: 0.6 MPa. Operating temperature: -10 to +50 °C
Type | 701 ASN 26S |
Vol. | 10 µl |
Inner needle Ø | 0.13 mm |
Outer needle Ø | 0.47 mm |
Needle length | 43 mm |
Gauge | 26s G |
