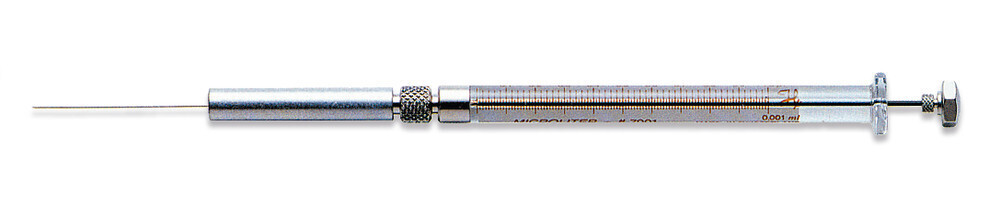

For dispensing liquids, free from dead volume, with very low nominal volumes. The needle and Wolfram piston are perfectly coordinated. The volume dispensing takes place in the needle.
Technical specifications:
Correctness: ≤ ±1% of the nominal volume. Test pressure: 0.6 MPa. Operating temperature: -10 to +50 °C
Needle with 90° grinding, blunt; for HPLC applications or for exact dispensing, for example, for thin-layer chromatography.
Type | 7000.5 KH |
Vol. | 0.5 µl |
Graduation | 0,005 µl |
Inner needle Ø | 0.1 mm |
Outer needle Ø | 0.51 mm |
Needle length | 70 mm |
Gauge | 25 G |
