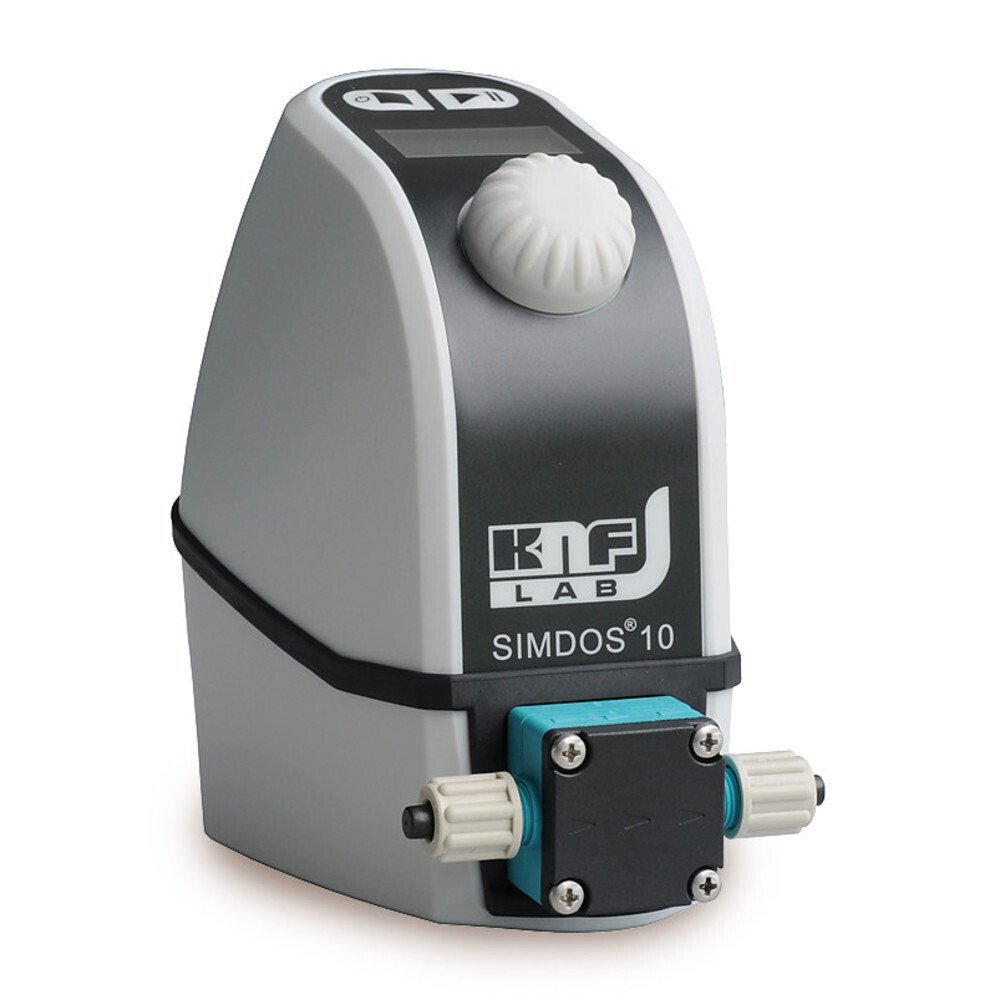

Diaphragm dosing pump SIMDOS® 10, FEM 1.10 KT.18 S2, pump head, PP, membrane, PTFE-coated EPDM, valve plate/seals, FFKM, 1 piece
SKU PA27.1
€ 1 840,40
In stock
1
Save this product for later
Diaphragm dosing pump SIMDOS® 10, FEM 1.10 KT.18 S2, pump head, PP, membrane, PTFE-coated EPDM, valve plate/seals, FFKM, 1 piece
Product Details
HS code: 84135080
EAN: 8721028051899
Brand: KNF
Suitable for pumping and metering neutral and aggressive liquids (please take the chemical resistance of the pump head into account).
- Optimised pump head with safety feature prevents the medium from leaking into the drive chamber in the event of leaks.
- Operating modes: continuous pumping (unlimited time), continuous pumping with timed switch-off, volumetric metering and series metering
- With calibration function for better accuracy
- Adjustable pump characteristics (e. g. for vaporous, viscous liquids)
- Pause function without loss of data
- Safe to run dry, self-priming and maintenance-free
Diaphragm metering pump SIMDOS® 10
Delivery incl. connection kit (hose and screw fitting) and intake filter.
Technical Information
| Type | FEM 1.10 KT.18 S2 |
| Delivery rate | 1-100 ml/min |
| Dispensing volume | 1-1000 ml |
| Metering time | 1 s - 99 h 59 min |
| Suction lift | 3 nWC |
| Pressure lift | 60 nWC |
| Max. pressure | 6 bar |
| Media temperature | +5 - +80 °C |
| Connection | for hose inner Ø 4 mm/outer Ø 6 mm |
| Power consumption | 24 W |
| IP rating | 65 |
| Noise level | ≤ 40 db |
| Materials in contact with media | pump head: PP diaphragms: PTFE-coated EPDM valve plate/seals: FFKM |
| W x D x H | 93 x 134 x 144 mm |
| Weight | 0,9 kg |
| Mains connection | 100-240 V, 50/60 Hz |
