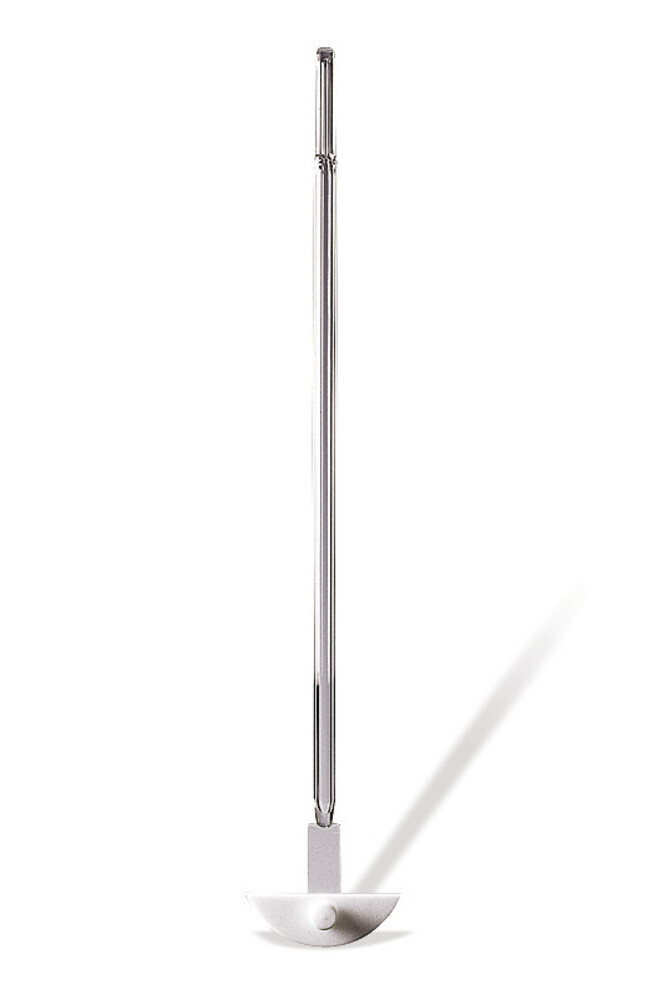

For NS 29/32. Length of the ground and polished KPG-stirrer contact surface 160 mm. Drive pin Ø 8 x L 40 mm. Shaft Ø 10 mm.
Tread | 160 mm |
Suitable for | Round bottom flask 4000/5000 ml |
Wavelength | 480 mm |
Dimensions | Blade 125 x 24 x 3 mm |
Anchor agitator: Reduced deposits on the vessel wall. Tangential stream with high shear rate. Suitable for semi-fluid mediums (medium to high viscosity).Dissolver agitator: Radial stream. High turbulence and shear forces.For use at medium to high speeds.Surface agitator: Less turbulence. Gentle handling of the product.For use at low to medium speeds.Half-moon agitator: The semi-round shape of the agitator blade is ideally suited to agitating in round-bottomed flasks, the tip function makes it easy to insert the agitator shaft into vessels which have been ground or have a narrow neck. Suitable for agitating liquids with low to medium viscosity. For use at medium speeds.Propeller agitator: Standard agitator. Axial direction. For mixing mediums with low to medium viscosity. Ideal for homogenising and suspending.Centrifugal agitator: Double-leaf; thanks to the moveable agitator leaf, the agitator shaft can be easily inserted into the vessels with a narrow neck. The leaves open when the speed increases. For use at medium to high speeds.
