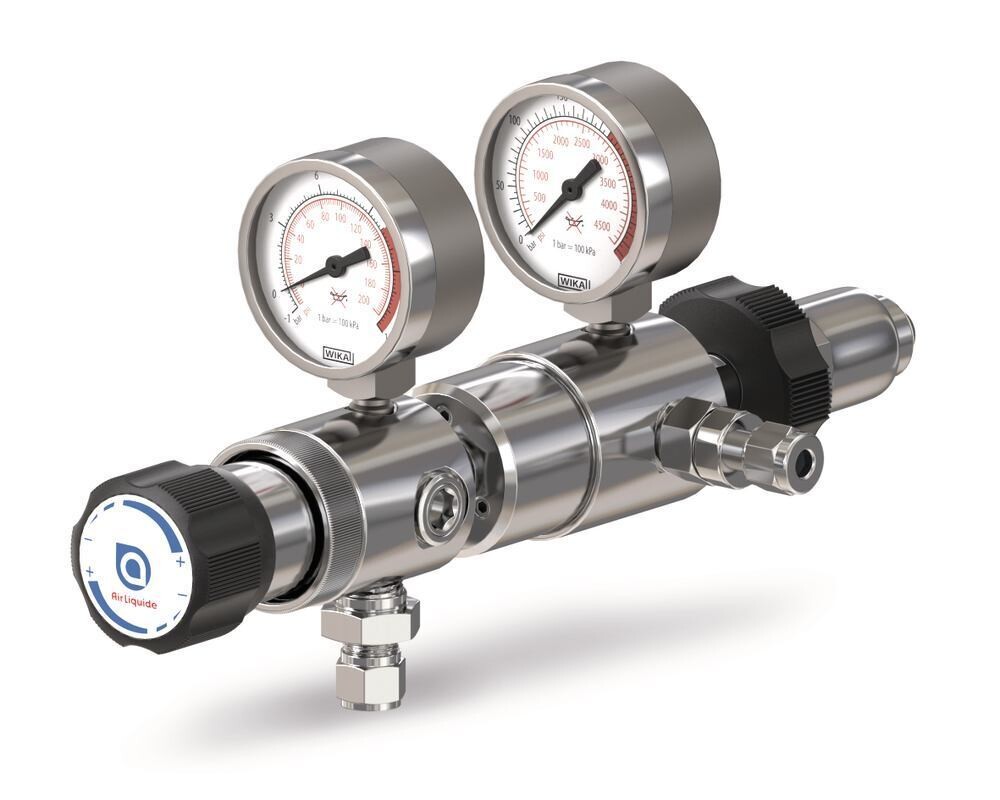

For all pure and ultra-pure gas mixtures, apart from acetylene and corrosive gases. For applications requiring a constant initial pressure.
Gas type | Nitrogen |
Back pressure | 0,05-1 bar |
Readability | 0.1 bar |
Bottle connection | W 24.32 x 1/14″ right |
Upstream pressure, max. | 200 bar |
Inlet connection | bottle connection according to DIN 477 |
Outlet connection | clamping ring screw connection for 6 mm pipe |
Total leakage rate | 3 x 10-7 mbar l/s |
Operating temperature | -20 to +50 °C |
L x W x H | 180 x 98 x 135 mm |
Weight | 1,6 kg |
