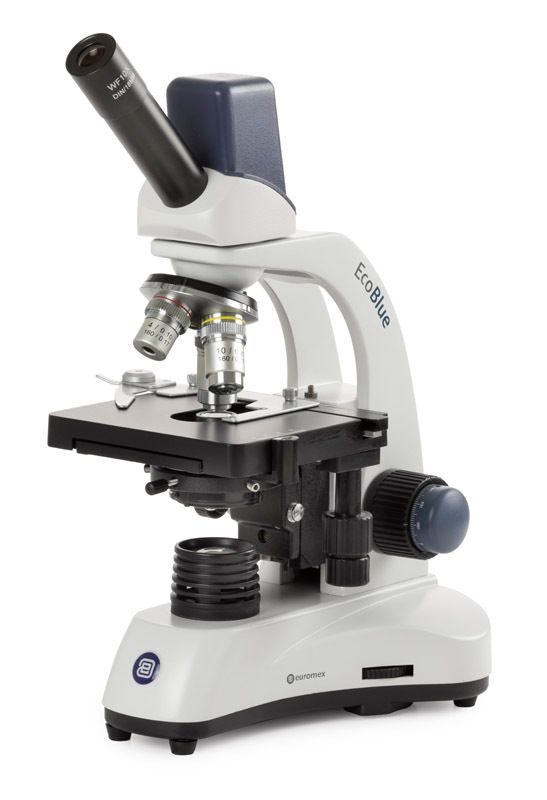

EcoBlue digital EC.1055 Mono eyepiece with 4x/10x/S40x objectives, with cross table

[tab name='Technical Specifications']

OCULAR(S)
• Wide angle WF 10x/18 mm eyepiece with pointing needle
• The eyepieces of the binocular and trinocular models are supplied without a pointing needle

HEAD
• Monocular models have a tube at a 45° angle
• The binocular and trinocular models have tubes at an angle of 30°
• The interpupillary distance is adjustable from 48 to 75 mm
• All binocular and trinocular models have a diopter adjustment ± 5 on the left tube
• All heads can be rotated 360°
br>• Models with an integrated USB-2 camera have a 5.0 MP 1/2" CMOS sensor with 2560 × 1920 pixels
• EcoBlue can also be supplied with a discussion head

REVOLVER
• Ball-bearing revolver for four lenses
• Polarization models are supplied with a fold-out analyzer

OBJECTIVES - 45 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25, S40x /0.65 and S100x/1.25 objectives
• The S40x, S60x and S100x oil immersion objectives have a spring mount
• The HLED-S models for polarization are supplied with semi-plan objectives

All lenses are treated against fungus and have an anti-reflective coating for maximum light output

(Photo: EC.7004, EC.7010, EC .7020, EC.7040, EC.7060, EC.7000)

FOCUS CONTROL
• Coaxial coarse and fine adjustment knobs, 200 divisions, 12.5 µm per division, 2.5 mm per rotation, 15 mm reach
• Adjustable specimen security

TABLE
• 123 x 119 mm table with two object clamps (EC.9500 attachable 51 x 26 mm XY cross table is optionally available)
• 123 x 128 mm table with 70 x 27 mm integrated XY cross table
• Polarization models are supplied with a 129 mm round table, 360° rotatable and with two object clamps. Polarization models also have a swing-out analyzer on the lamp housing

CONDENSER
• Height-adjustable Abbe condenser NA 1.25 with iris diaphragm and filter holder
• Polarization models have a rack & pinion arrangement, other models have a helical arrangement

LIGHTING

• Monocular models are supplied with adjustable 1W LED lighting
• The binocular models have adjustable 1 W NeoLED lighting for maximum light output
• Models without an XY cross table are supplied without a rechargeable batteries and with an internal 100-240 V power supply
• Models with an (very similar to the halogen light spectrum).
With an integrated 100-240 V power supply, no batteries

DIGITAL MODELS

CAMERA
• All digital models have a USB 2 camera with a 5.0 MP 1/2" CMOS sensor
• Maximum resolution of 2560 × 1920 pixels, 24 bit color depth, up to 30 frames per second
• Digital models are equipped with ImageFocus Plus software, USB 2 cord and a 1mm/100 micrometer
• Camera warranty is 2 years

SOFTWARE
• Digital models come with ImageFocus Plus software for storing images and videos
• ImageFocus Plus software allows images to be saved in .jpg, .tif or .bmp formats and videos in .avi format
• In addition to taking photos and videos, the user can also take measurements on still and live images and annotate are added to still images.
• Compatible with Windows 7, 8, 10 and 11, both 32 and 64 bit computers
• A Mac OS version is also available
• Free updates are available on this website

ANTI-THEFT SLOT
On the back of the bScope there is a small slot that, in combination with a Kensington Security Lock, can protect the microscope against theft

STORAGE AND TRANSPORT

From left to right: AE.9918 - AE.9912

PACKAGING
• Complete with plug or mains adapter, white filter, dust cover, spare fuse, manual and 5 ml immersion oil for models with an S100x lens
• The EcoBlue models with an external power supply and xy table (EC.1x5x) are equipped with 3 rechargeable AA batteries
• Everything is packed in a polystyrene box
