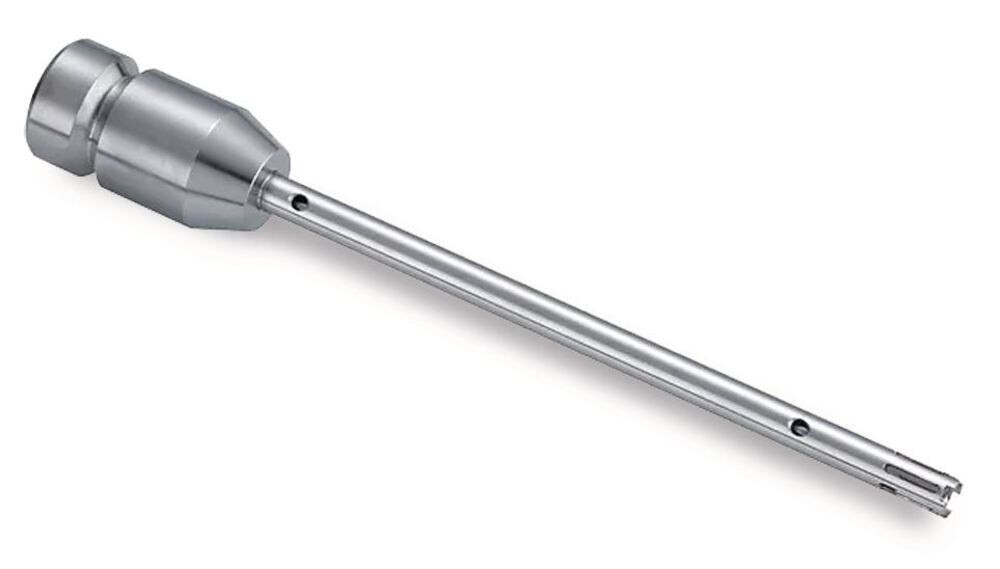

Made of stainless steel. Tool change and dismantling for cleaning purposes without additional tool.
Type | S 10 N - 5 G |
Working range | 0.5 to 10 ml |
Ø Stator | 5 mm |
Ø Rotor | 3.8 mm |
Gap width between stator and rotor | 0.1 mm |
Immersion depth | 20–75 mm |
Materials in contact with product | PTFE, AISI 316L |
Temperature range | to +180 °C |
Ultimate fineness, emulsions | 1–10 µm |
Ultimate fineness, suspensions | 5–25 µm |
