Range of applications:
Colour code: red. For dispensing aggressive reagents directly from the supply bottle, e.g. concentrated bases and acids such as H3PO4, H2SO4 (excluding, e.g., HCI, HNO3 and HF), saline solutions and a wide range of organic solvents.
Materials in contact with media:
borosilicate glass, Al2O3 ceramic, platinum-iridium, ETFE, FEP, PFA, PTFE and PP.
Limits of use:
max. vapour pressure 600 mbar; max. viscosity 500 mm2/s; max. temperature +40 °C; max. density 2.2 g/cm3.

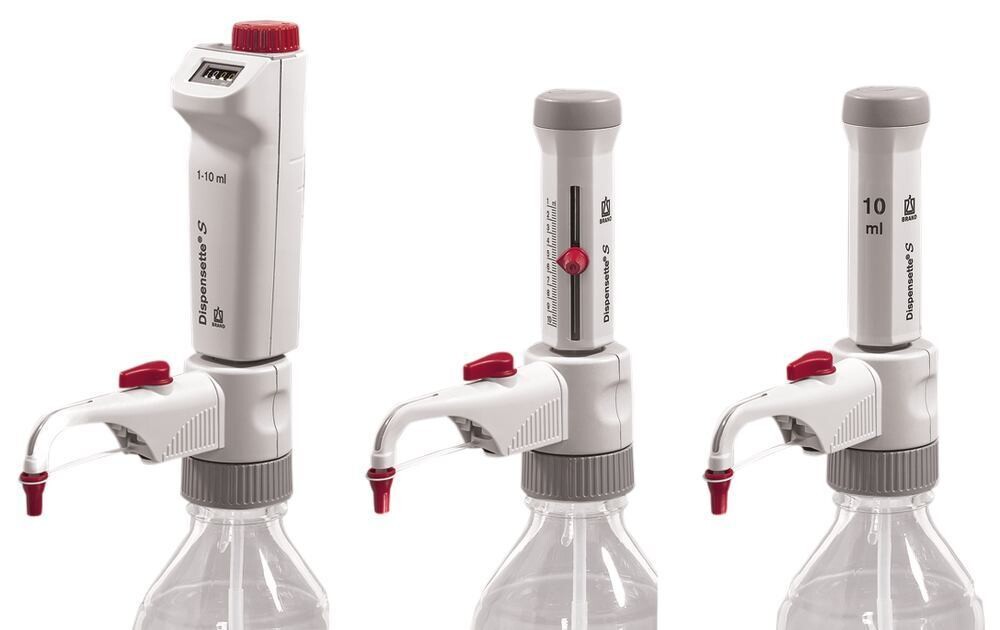

Easy-to-read digital display via mechanical counter. Easy-Calibration technology for fast calibration.
Discharge tube without recirculation valve, prevents contamination of the bottle contents.
Volume | 5-50 ml |
Graduation | 0,2 ml |
Nominal volume | 50 ml |
Correctness | ±250 µl |
Variation coefficient | ±50 µl |
Operating temperature | +15 - +40 °C |
Adapter | GL 32-33, GL 38, S 40 |
Suction tube length | 330 mm |
