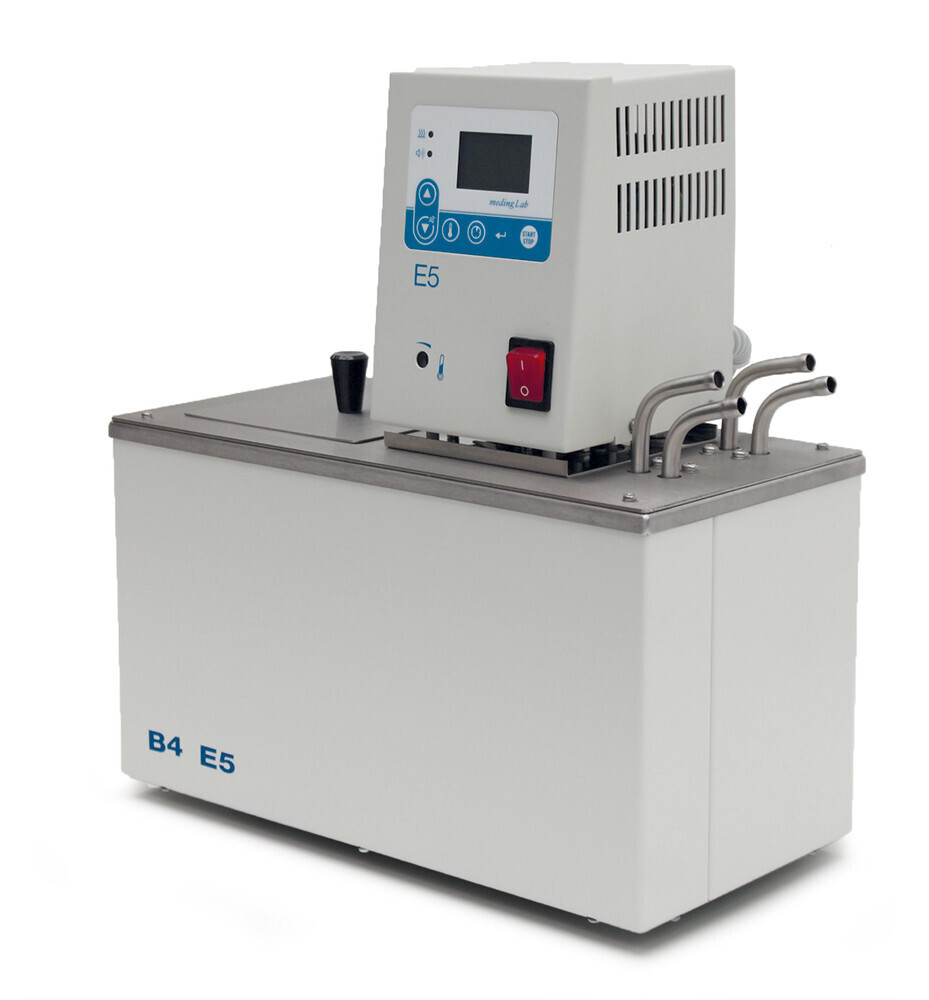

Circulation thermostat E5 series Model E5 standard up to 100 °C, 6 l, E5-B6, 1 piece
SKU KA70.1
€ 1 719,65
In stock
1
Save this product for later
Circulation thermostat E5 series Model E5 standard up to 100 °C, 6 l, E5-B6, 1 piece
Product Details
HS code: 84198998
EAN: 8721028080868
Brand: medingLab
Option for temperature control in the stainless steel bath. Small, external, sealed vessels can be temperature controlled using pressure pumps.
Circulating thermostat E5 series Model: E5 standard, up to 100 °C
- For working temperatures up to +100 °C
- Programmable timer function (up to 99.99 min)
- LCD display with 0.1 °C display resolution
- Actual or setpoint value display (call up setpoint value display by pressing a button, actual value is permanently visible)
- Adjustable button locking
- Visual and/or audible limit alarm
- Adjustable setpoint value limit and alarm circuit
- Excess temperature and sub-level protection for non-flammable liquids (FL)
Delivery incl. bath cover, pump outlets and cooling coil.
Technical Information
| Type | E5-B6 |
| Operating temperature | +25 to +100 °C |
| Temperature constancy | ±0,1 K |
| Display resolution | 0,1 °C |
| Heating output | 1000 W |
| Max. pump pressure | 120 mbar |
| Max. flow | 5 l/min |
| Bath volume | 6 l |
| Bath opening | 230 x 75 mm |
| Inner depth | 150 mm |
