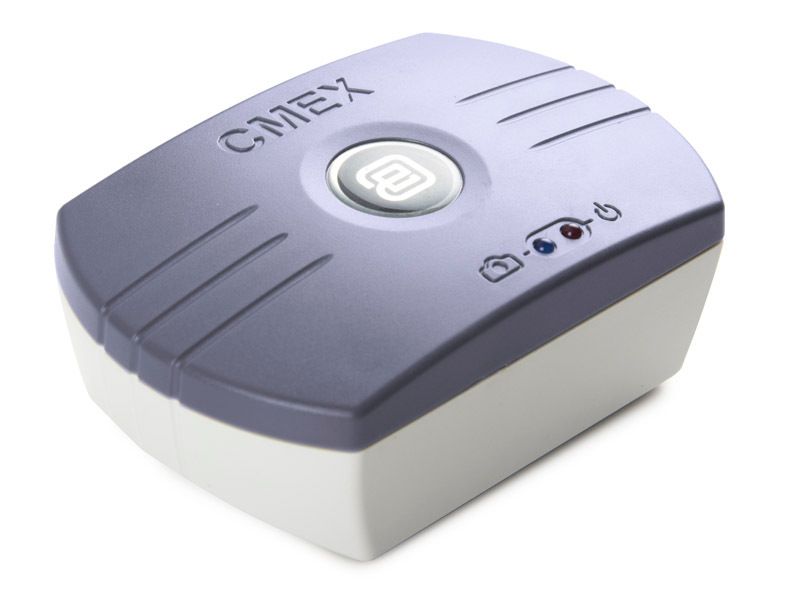

CMEX USB camera DC.5000f with 1/2.9” CMOS sensor and 5 MP
SKU DC.5000f
€ 314,58
In stock
1
Save this product for later
CMEX USB camera DC.5000f with 1/2.9” CMOS sensor and 5 MP
Product Details
EAN: 8,95E+12
Brand: Euromex
Dynamic Range (db): 72
Sensitivity mv/lux-sec: 0,51 V/lux-sec @ 550 nm
Grayscale: 8 bits
To colour: 24 bits
Model: DC.5000f
Pixel Size (µm): 2,0 x 2,0
Resolution: 2560 x 1920
Sensor : CMOS 1/2.8 inch
[tab name='Description']
The various USB-2 cameras with ImageFocus analysis software are the perfect solution for today's needs in education, laboratories and industry. The cameras are suitable for Life Science and metallurgical microscopes as well as stereo microscopes
CMEX-1 USB-2 camera with CMOS sensor
The CMEX-1 is equipped with a CMOS sensor with 10 bit gray value conversion and 24 bit color. The CMEX-1 has a USB-2 connection and is supplied with ImageFocus 4 software.
With ImageFocus 4 it is possible to take photos and videos, take measurements to perform on still or live images, and to add texts to captured images. Software is suitable for Windows 7 and higher, for both 32 and 64 bit computers. The ImageFocus 4 Lite software is available for Mac OS
CMEX-f USB-2 cameras with fast CMOS sensor
The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bit grayscale conversion and 24 bit color. The CMEX-f cameras have a USB-2 connection and are supplied with ImageFocus Plus software. With ImageFocus Plus it is possible to take photos and videos, perform measurements on still or live images, and add texts. to add to captured images. Software is suitable for Windows 7 and higher, for both 32 and 64 bit computers. A version is also available for Mac OS
Features
- Entry-level cameras
- For amateur, education and laboratories
- 1.3 - 12.0 Mpix CMOS color USB 2.0 camera
- 1272 x 952 - 4000 x 3000 pixels
- Colors 24 bits
- Low signal to noise ratio
- USB 2.0 interface
< table class="ecwid-description-table">ModelDC.5000fVersion CMEX-5fSensor1/2.8” CMOS with 5 MP< td>Pixel size (μm) 2.0 x 2.0 Resolution2560 x 1920
1600 x 1200
Colors24 bits
Sensitivity mv/lux- sec2.0 V/lux-sec @ 550 nmDynamic range72 dbFrame rate30
50
1600 x 1200
Colors24 bits
Sensitivity mv/lux- sec2.0 V/lux-sec @ 550 nmDynamic range72 dbFrame rate30
50
[tab name='Technical Specifications ']
Sensor
CMOS 1/2.8 inch
Pixels
2560 x 1920 pixels, 5.0 Mpix
Scan mode
Progressive, rolling shutter
Pixel size
2.0 μm x 2.0 μm
Filter
RGB
Mounting
C-ring
Frame rate
Up to 30 frames per second (2560 x 1920 pixels)
Up to 50 frames per second (1600 x 1200 pixels)
Gray value
8 bits
Colors
24 bits
Sensitivity
2.0 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 2 s
White balance
Automatic / manual
Dynamic range
72 db< /p>
Data interface
USB 2.0 at 480 Mb/s
Using conditions
0 – 60° C, 10-85% humidity
Supplied with < br>0.5x objective with C-ring, USB 2.0 cable, 30 and 30.5 mm to 23.2 mm tube adapters for use with stereo microscopes, 76 x 24 mm calibration slide (1mm/100), CD ROM with ImageFocus Plus software for Windows and Mac OS, cardboard packaging
Software
Windows 7 and higher (32 and 64 bit computers) and Mac OS
Article
DC.5000f
