The various USB-2 cameras with ImageFocus analysis software are the perfect solution for today's needs in education, laboratories and industry. The cameras are suitable for Life Science and metallurgical microscopes as well as stereo microscopes

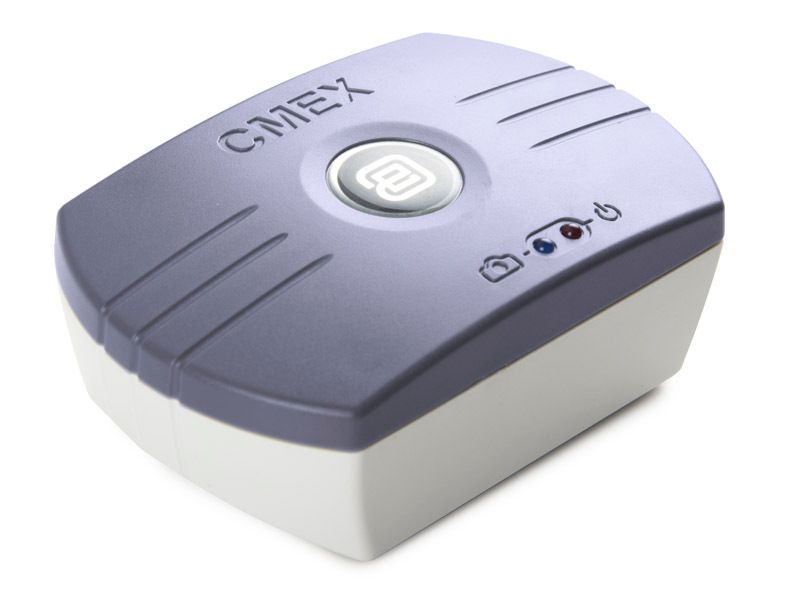

The CMEX-1 is equipped with a CMOS sensor with 10 bit gray value conversion and 24 bit color. The CMEX-1 has a USB-2 connection and is supplied with ImageFocus 4 software.
With ImageFocus 4 it is possible to take photos and videos, take measurements to perform on still or live images, and to add texts to captured images. Software is suitable for Windows 7 and higher, for both 32 and 64 bit computers. The ImageFocus 4 Lite software is available for Mac OS
The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bit grayscale conversion and 24 bit color. The CMEX-f cameras have a USB-2 connection and are supplied with ImageFocus Plus software. With ImageFocus Plus it is possible to take photos and videos, perform measurements on still or live images, and add texts. to add to captured images. Software is suitable for Windows 7 and higher, for both 32 and 64 bit computers. A version is also available for Mac OS
[tab name=' Technical Specifications']
Sensor
CMOS 1/2.5 inch
Pixels
1272 x 952 pixels, 1.3 Mpix
Scan mode
Progressive rolling shutter
Pixel size
2.2 μm x 2.2 μm
Filter
RGB
Mounting
C-ring
Frame rate
Up to 15 shots per second (1272 x 952 pixels)
Up to 30 shots per second (632 x 472 pixels)
ADC (gray value)
10 bits
Colors
24 bits
Sensitivity
1.3 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 300 ms
White balance
Automatic / manual
Dynamic range
72 dB
S /N max
55 dB
Data interface
USB 2.0 at 480 Mb/s
Using conditions
0 – 60° C, 45-85% humidity< /p>
Storage temperature
-20 to 70° Celsius
Supplied with
0.45x lens with C-ring, USB 2.0 cable, 30 and 30.5 mm to 23 .2 mm tube adapters for use with stereo microscopes, 76 x 24 mm calibration slide (1mm/100), CD ROM with ImageFocus 4 software, cardboard packaging
Software
Windows 7 and higher (32 and 64 bit computers ). A Mac OS lite version is also available
Article
DC.1300c
